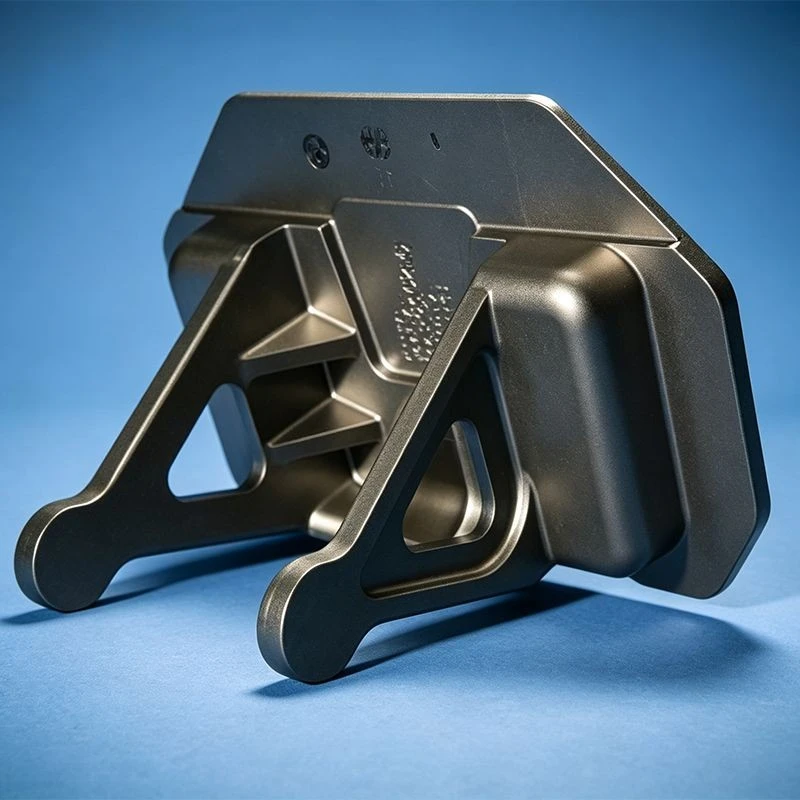

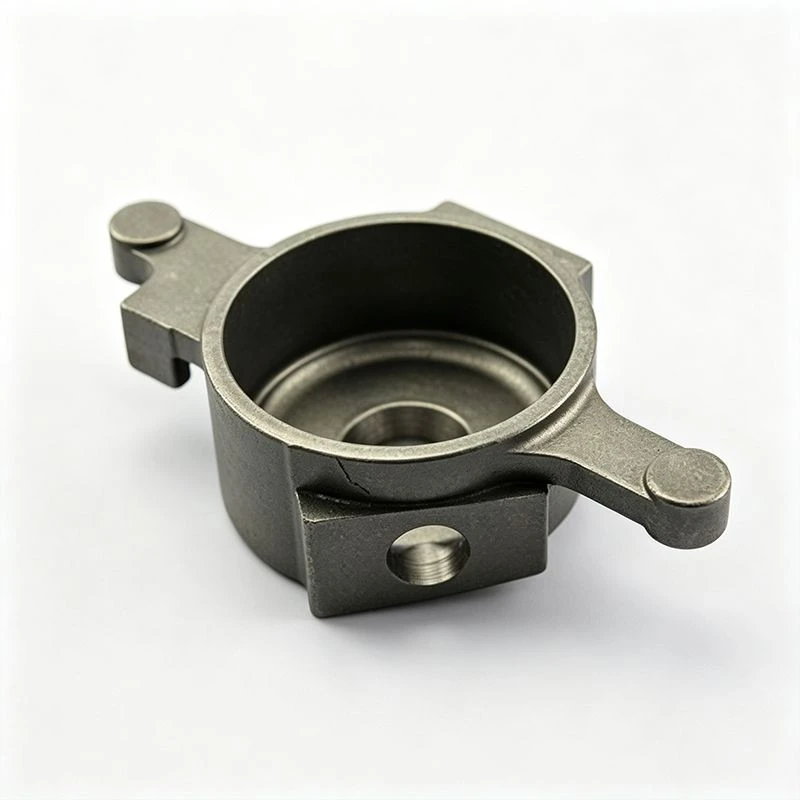

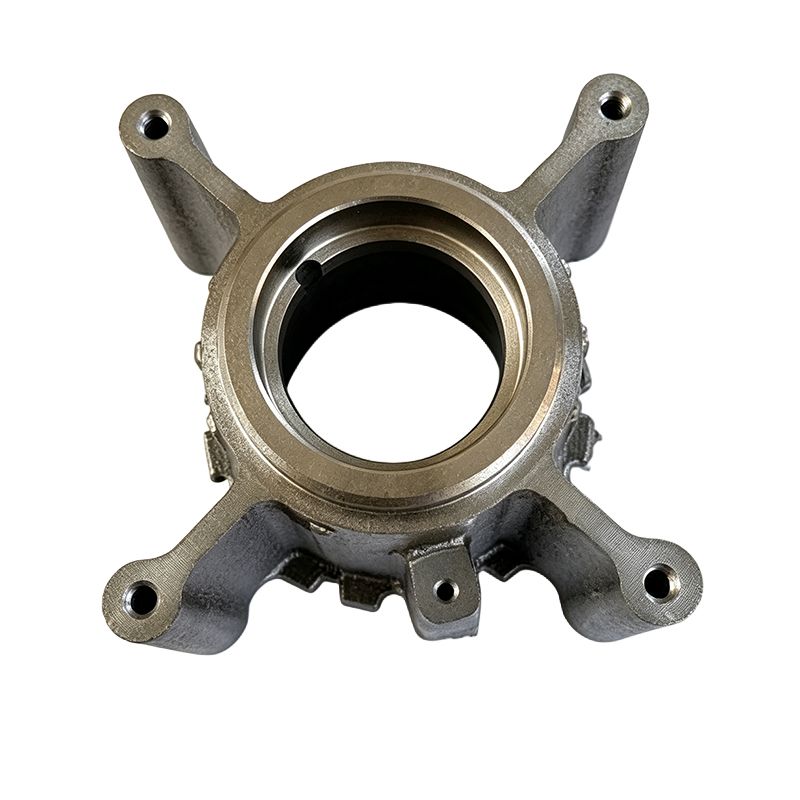

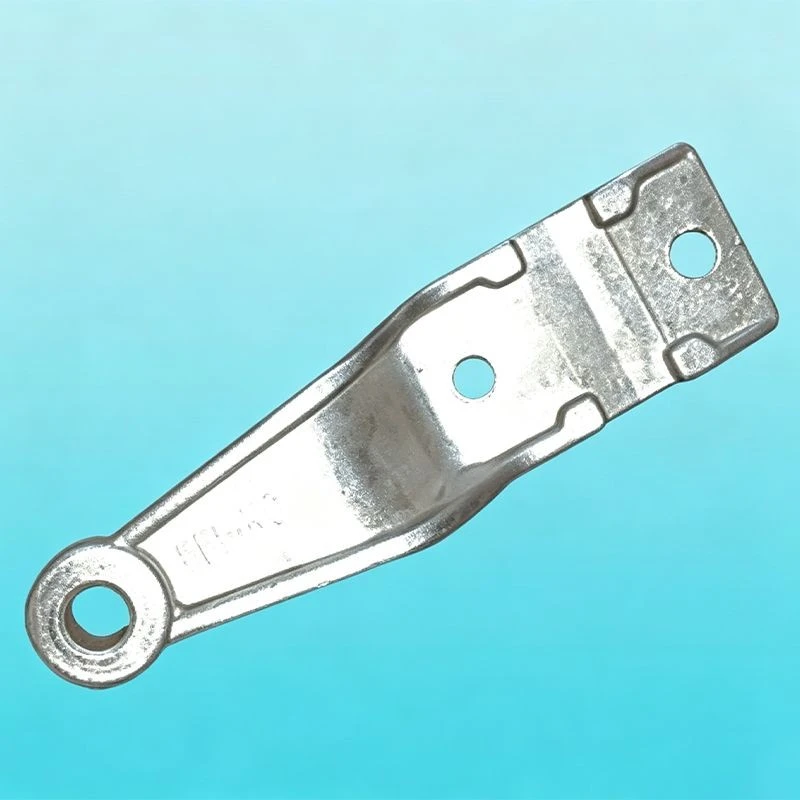

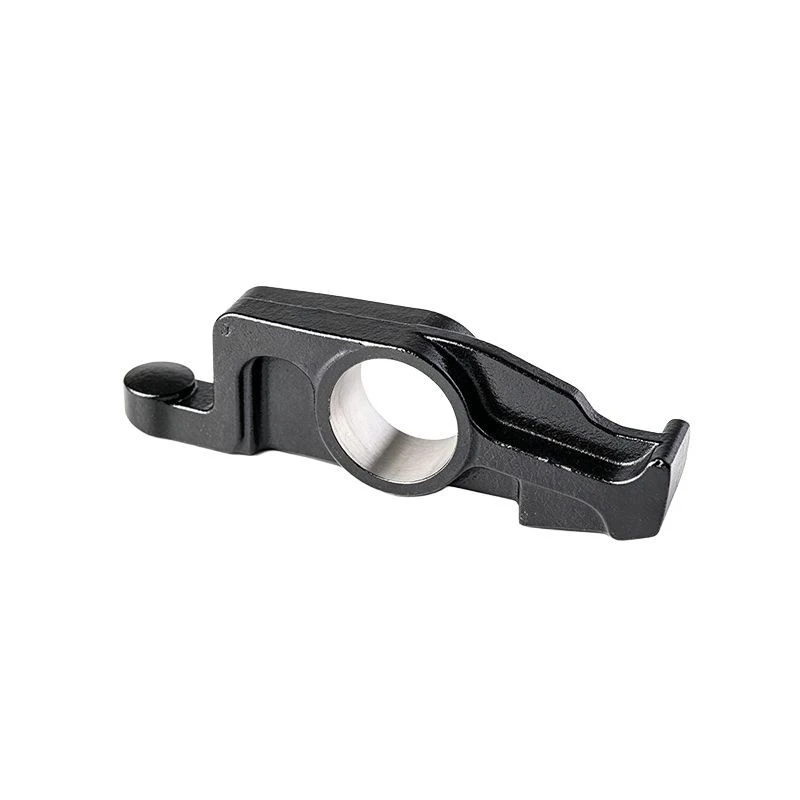

Alloy Steel Casting

Alloy steel casting is our solution for applications that demand superior strength, wear resistance, or heat resistance. We add elements like chromium, molybdenum, nickel, and vanadium to carbon steel. These elements enhance the material's performance in harsh conditions. Our alloy steel casting covers low-alloy, medium-alloy, and high-alloy grades. Typical applications include petrochemical equipment, power generation machinery, mining equipment, and automotive transmission systems. Common products are gear blanks, turbine housings, excavator bucket teeth, and mill liners. We understand that buyers need castings that perform reliably in extreme environments. Our alloy steel casting delivers that reliability.

Alloy steel casting presents unique challenges. High alloy content reduces fluidity and increases solidification range. This makes the steel prone to segregation and cracks. We address these issues through optimized gating system design. We use bottom-pouring to reduce turbulence. We control pouring temperature 10-20°C higher than for carbon steel. We use insulating risers to extend feeding time. For high-alloy steels like ZGMn13, we use special water toughening treatment. This creates an austenitic structure that work-hardens during use. The result is significantly longer wear life. Our alloy steel casting process ensures internal soundness and consistent material properties.

Machining alloy steel casting requires special attention to tool wear. Alloy steel hardness typically ranges from HB200 to HB350. Some high-alloy steels show significant work hardening. Our process engineers select the right insert materials like CBN or ceramic tools based on the specific grade and hardness. For high-hardness alloy steel, we use small depth of cut and high feed rate. This strategy prevents heat buildup and tool chipping. We have successfully machined alloy steel casting with hardness up to HRC52 while maintaining surface roughness at Ra≤1.6μm. Inspection standards for alloy steel casting are stricter than for ordinary carbon steel. We perform ultrasonic testing (UT) and magnetic particle testing (MT) on critical load-bearing parts. These tests ensure no internal cracks or inclusions exist. Hardness testing uses Rockwell (HRC) and Brinell (HB) methods per ASTM E18 or E10 standards. Every batch comes with a complete material test report, heat treatment curve, and inspection report. We serve customers ranging from small machine shops to Fortune 500 companies. They trust our alloy steel casting quality and delivery. Standard delivery is 50-60 days. Rush orders are negotiable. We accept custom orders starting from 1 piece. Paid samples are available. Send us your drawing. We will respond with DFM evaluation and quotation within 24 hours.
