Corner Workstation

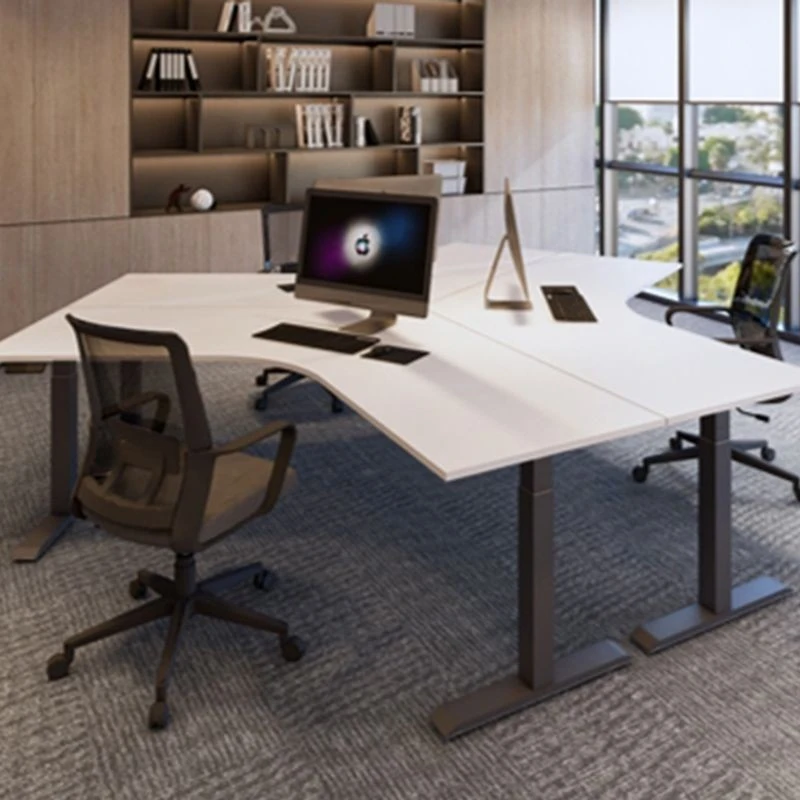

Corner workstation is our L-shaped electric standing solution. It combines two desk frames with corner connectors to form a complete L-shaped sit-stand work surface. This design makes excellent use of corner office space while providing larger work area. One side holds the computer and monitors. The other side serves as a file processing, drawing, or meeting area. Our corner workstation serves open-plan offices, project team workstations, call center stations, and manager offices. Every workstation we produce maximizes corner space efficiency.

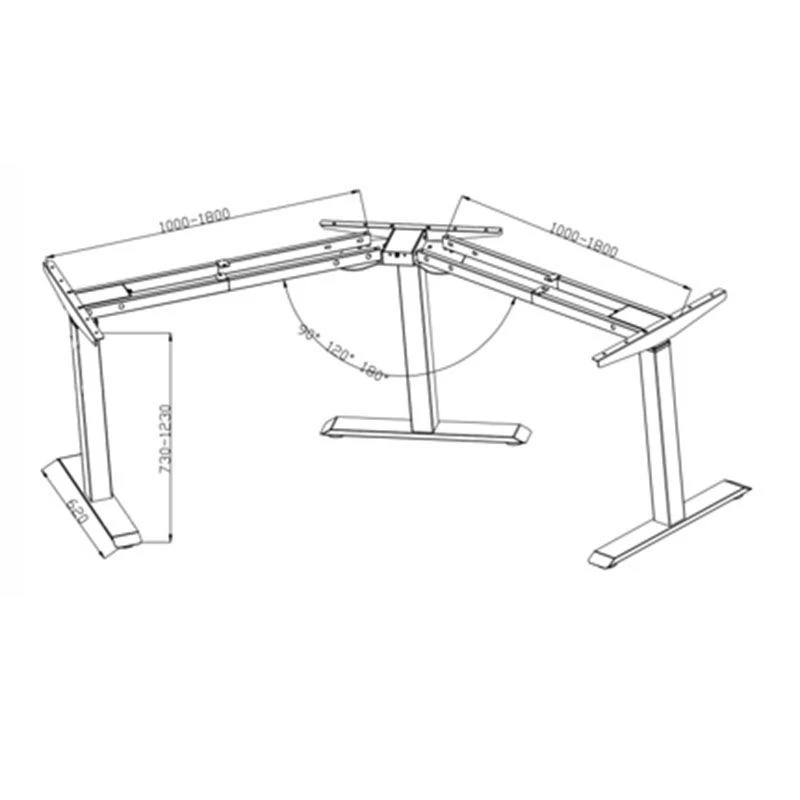

Our corner workstation uses a dual motor drive solution. Each desk frame has an independent dual motor system. Synchronized control keeps both L-shaped wings level during lifting. Lifting range is 24.8"-50.0" (630-1270mm) for both wings. Each wing telescopes horizontally from 39.4"-70.9" (1000-1800mm). Compatible desktop panels are (51.2"-78.7") × (23.6"-31.5") for each wing. Total load capacity is 150kg. Lifting speed is 1.4"/s (35mm/s). Running noise is below 48dB. Corner connectors are stamped from high-strength steel with special fasteners. The connection is solid with no wobble or noise.

Corner workstation installation is more involved than standard frames. It requires two frames and corner connectors. Our step-by-step installation videos and illustrated manuals make it straightforward. Installation typically takes 10-15 minutes. Cable management is a key design consideration. Frame beams have built-in cable routing channels. Under-desk cable trays keep all cables organized. We offer two controller options: dual controllers (one for each wing) or single master controller (synchronized control). Quality control matches our standard desk products. Every workstation undergoes load life testing at 150kg for 3000 cycles, noise testing, voltage withstand testing, and function testing. Each set has an independent serial number with QC PASS label. Motor and column warranty is 3-5 years. Production takes 30-40 days including corner connector customization.
